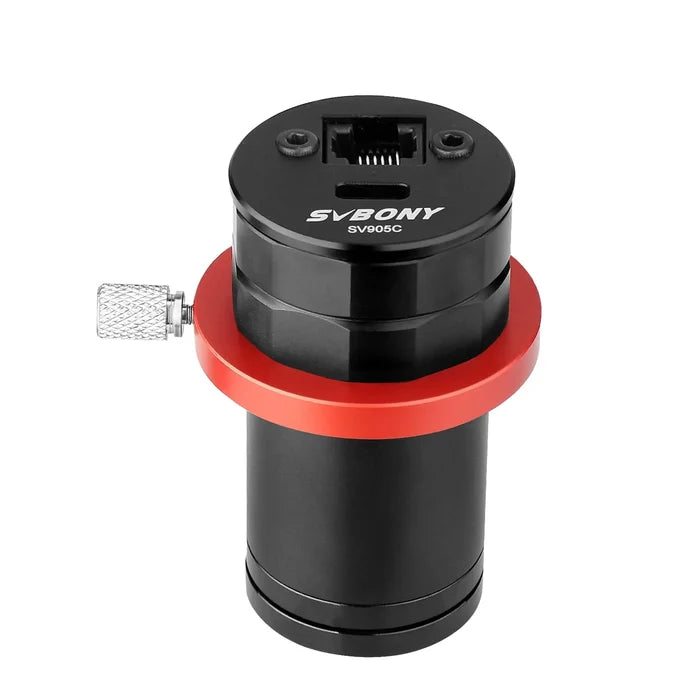

SVBONY SV905C Telescope Camera with CMOS Sensor

Compact and highly sensitive 1.23-megapixel color camera with 1/3” CMOS 1280x960 sensor perfect for autoguiding or planetary imaging; small 3.75-micron pixels; high peak QE of 80% and low read noise allows tight tracking of faint guide stars;

The front of the camera is equipped with a CS interface and a CS-C adapter ring; which can be matched with a CS lens or a C-mount lens;

The product is designed with snap ring and scale mark to facilitate the use of the same guide lens for focusing and positioning.

1. Compact and highly sensitive 1.2-megapixel colour camera with 1/3” CMOS 1280x960 sensor perfect for auto-guiding or planetary imaging
   2. Small 3.75-micron pixels, high peak QE of 75% and low read noise allows tight tracking of faint guide stars
   3. USB2.0 Type-C interface and ST4 port to connect directly to the auto-guider port of a telescope mount
   4. Compact form factor with a diameter of 36mm lets you slip the camera into a 1.25” focuser; the weights just 60g (2.1oz); AR-coated protective window to maximize transmission and protect the sensor; includes M28.5X0.6 female thread for astronomy filters
   5. Software and drivers available from the manufacturer's website.

Technical Specifications

In the Box

• SVBONY SV905C Guide/Imaging Camera
• USB C cable
• ST4 Cable
• 1.25" Extension
• CS-C adapter
• M28.5-CS adapter
• 1.25" dust cover
• Cleaning cloth
• User manual
• CD

Manuals & Warranty

Svbony 1-Year Warranty
